ESVP : Remote Control Software

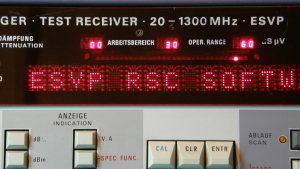

The ESVP remote control software is designed to remotely control the ESVP with GPIB/IEEE-488.2 instructions. It is extremely useful when operating your ESVP. No need anymore to enter the complex special functions on the ESVP itself. In stead they are selected with a simple click on your computer screen.

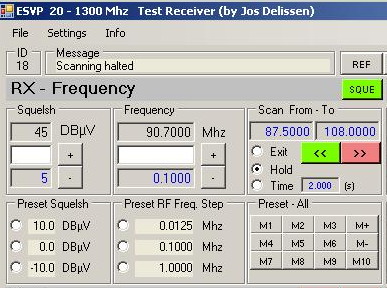

Scanning a particular frequency range is made very simple, including an automatic scan stop (3 methods) when signals are measured above a certain squelsh threshhold. This function is not available on the ESVP itself, but is a great capability when using the ESVP remote control software for radio monitoring.

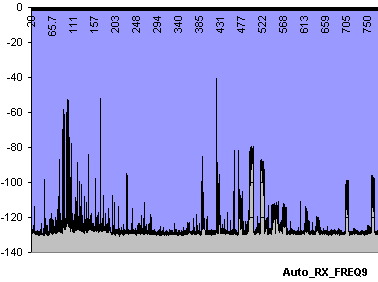

Also the measurement data can be easily transfered into excel. Several Excel chart types can be preselected for grafical data presentation.



The software is build to work in Windows XP/Vista/7, in conjunction with the
-  National Instruments   NI PCI-GPIB controller
-   NI-488.2 controller software for Windows 7/Vista/XP (V3.02)
-  .NET Framework V4.0
-  Microsoft Excel 2007 for data presentation

(if you have .NET Framework 4.5 on a 64 bit machine, please also consider the following  patch from NI)

History Always uninstall the old version first before installing a new version !

Date Version Description
2009-05-15 V1.0.0.0 Initial Version
2009-11-20 V1.1.0.0 Improved performance, Faster Excel integration, New logging functionality
2010-02-13 V1.2.0.0 Excel 2007 integration, Bug fix manual GPIB
2010-03-01 V1.2.0.1 Bug solved for reading DbuV and Dbm in V1.84 of ESVP
2013-02-14 V1.3.0.0 Support for latest National Instruments GPIB Driver (NI 488.2 Version 3.02), Windows 7 support, Bug Fix uV read out


It can be downloaded for free




Please also check out the "User Manual ESVP-ESH3 Remote Control Software"  for a detailed description of all its functionality.

It's functionality is split in two parts. With it's standard functionality you are able to check if the software is suitable to operate on your computer / OS / GPIB installation. If it works fine you may consider to make a registration request to get access to the enhanced functionality.

Standard functionality

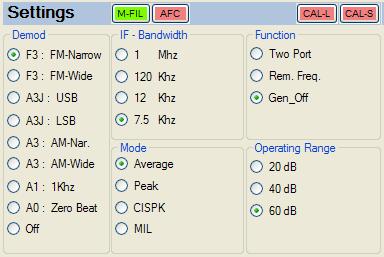

 - Operating the main receiver settings, such as
        * RF Frequency,  IF Bandwidth and demodulation mode
        * Level Modes (AV, PEAK, CISPR and MIL)
        * Squelsh, Attenuation level, Operating range and Function mode



Enhanced functionality (subject to registration )
 - Making use of the available measurements like
        * Measurement of voltage (in DBm, DBµV or µV)
        * Frequency and frequency-offset measurements
        * Modulation depth and frequency deviation
        * Field strength, current and spectral density
 - Making use of the scanning functionality, including the ability to
   preset 10 device settings & scanning ranges




These measurements can be either "one shot" or  "sequentially"
depending on various ferquency settings and selected measurements.
