CMT : Operations

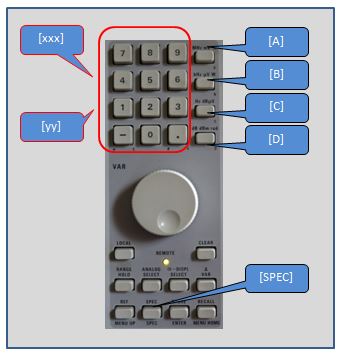

Many operating and measuring functions are only initiated with special function codes.

There are four categories

1)    General Instrument Functions

        Format = [xx]  [SPEC] ( [yy] [ SPEC] )

        [50113] [SPEC]   =  Display of options fitted

2)    Control Functions for Option Autorun Control (Option CM-B5)

        Format = [A]  [xx]  [SPEC] ( [yy] [ SPEC] )

        [A] [540] [SPEC] = Initialize data transfer

3)    Control Functions for IEC Bus (Option CM-B4)

        Format = [B]  [xx]  [SPEC] ( [yy] [ SPEC] )

        [B] [100] [SPEC] [25] [SPEC]  = Set GPIB address to 25

4)    Control Functions for Frequency Counter / (En)coder

        Format = [C]  [xx]  [SPEC] ( [yy] [ SPEC] )

        [C] [20] [SPEC]   = RF Resolution 1 Hz
        [C] [21] [SPEC]   = RF Resolution 10 Hz


5)     Control Functions to call calibration Routines / Self Test

        Format = [D]  [xx]  [SPEC]

        [D] [13] [SPEC]   = Switch off led for 5 sec.

See the operating manual for a detailed overview
